Jenkins

View our Video Guide for a more in-depth demo.

Preview

This pipeline will tie any discovered security vulnerabilities back to the code origin using the Jenkins Warnings plugin. Example output is below.

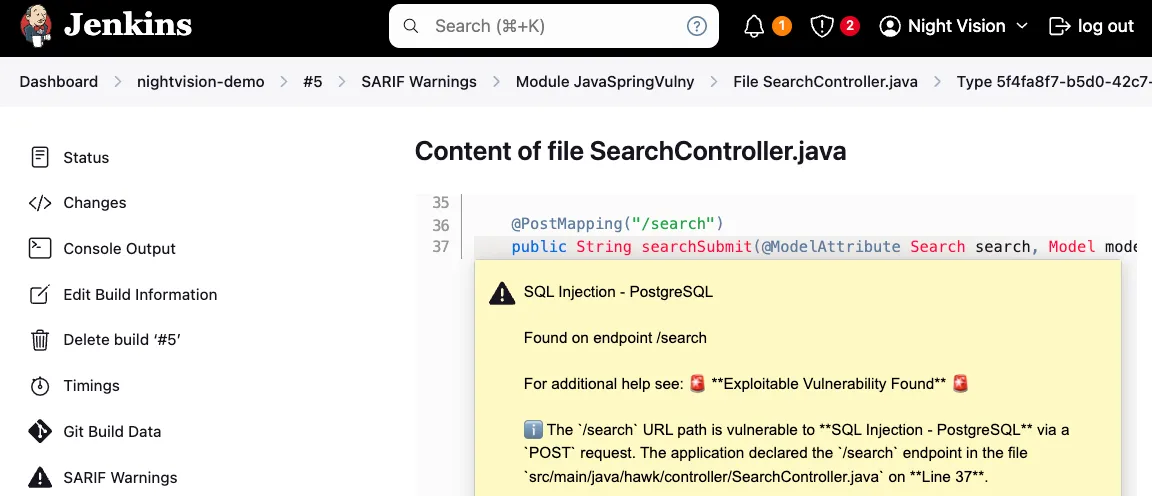

Discovered vulnerabilities are uploaded via the Jenkins warning plugin and displayed next to the origin in code.

Prerequisites

• To run NightVision scans from Jenkins, you must set the NIGHTVISION_TOKEN environment variable. You can create the API key by following the instructions here: Generate API Tokens.
• After creating the token, you can store it in the UI for your Pipeline via Manage Jenkins > Manage Credentials.

You must also specify the Target and Authentication credentials (if applicable) for the NightVision CLI.

• As covered in previous pages, you can create those prerequisite resources for this example app by running the following commands from your terminal:

# clone the example code
git clone https://github.com/nvsecurity/java-github-actions-demo.git
cd java-github-actions-demo
# Start the example app
docker compose up -d

# Create the nightvision resources
nightvision target create javaspringvulny-api https://localhost:9000 --type api
echo "Enter the following credentials:"
echo "username: user"
echo "password: password"
nightvision auth playwright javaspringvulny-api create https://localhost:9000

Pipeline

• In the example below, observe how the parameters are provided to the job via environment variables. Jenkins Pipeline Repository

pipeline {
    agent any

    environment {
        NIGHTVISION_TOKEN = credentials('nightvision-token')
        NIGHTVISION_TARGET = 'javaspringvulny-api'
        NIGHTVISION_AUTH = 'javaspringvulny-api'
        TARGET_LANGUAGE = 'java'
    }

    stages {
        stage('Clone Code') {
            steps {
                checkout scm
            }
        }

        stage('Install NightVision') {
            steps {
                script {
                    sh 'wget -c https://downloads.nightvision.net/binaries/latest/nightvision_latest_linux_amd64.tar.gz -O - | tar -xz'
                }
            }
        }

        stage('Extract API Documentation from Code') {
            steps {
                script {
                    sh """
                    ./nightvision swagger extract . --target "${env.NIGHTVISION_TARGET}" --lang "${env.TARGET_LANGUAGE}" || true
                    if [ ! -e openapi-spec.yml ]; then
                        cp backup-openapi-spec.yml openapi-spec.yml
                    fi
                    """
                }
            }
        }

        stage('Start the App') {
            steps {
                script {
                    sh 'docker compose up -d; sleep 10'
                }
            }
        }

        stage('Scan the API') {
            steps {
                script {
                    sh """
                    ./nightvision scan "${env.NIGHTVISION_TARGET}" --auth "${env.NIGHTVISION_AUTH}" > scan-results.txt
                    ./nightvision export sarif -s \$(head -n 1 scan-results.txt) --swagger-file openapi-spec.yml > results.sarif
                    """

                }
            }
        }

        stage('Upload SARIF file to Jenkins using Warnings Plugin') {
            steps {
                script {
                    // ensure the file exists and then publish it using the Warnings Next Generation Plugin
                    sh 'test -f results.sarif'
                    recordIssues tool: sarif(pattern: 'results.sarif')
                }
            }
        }
    }

    post {
        always {
            // cleanup
            sh 'docker compose down'
        }
    }
}
